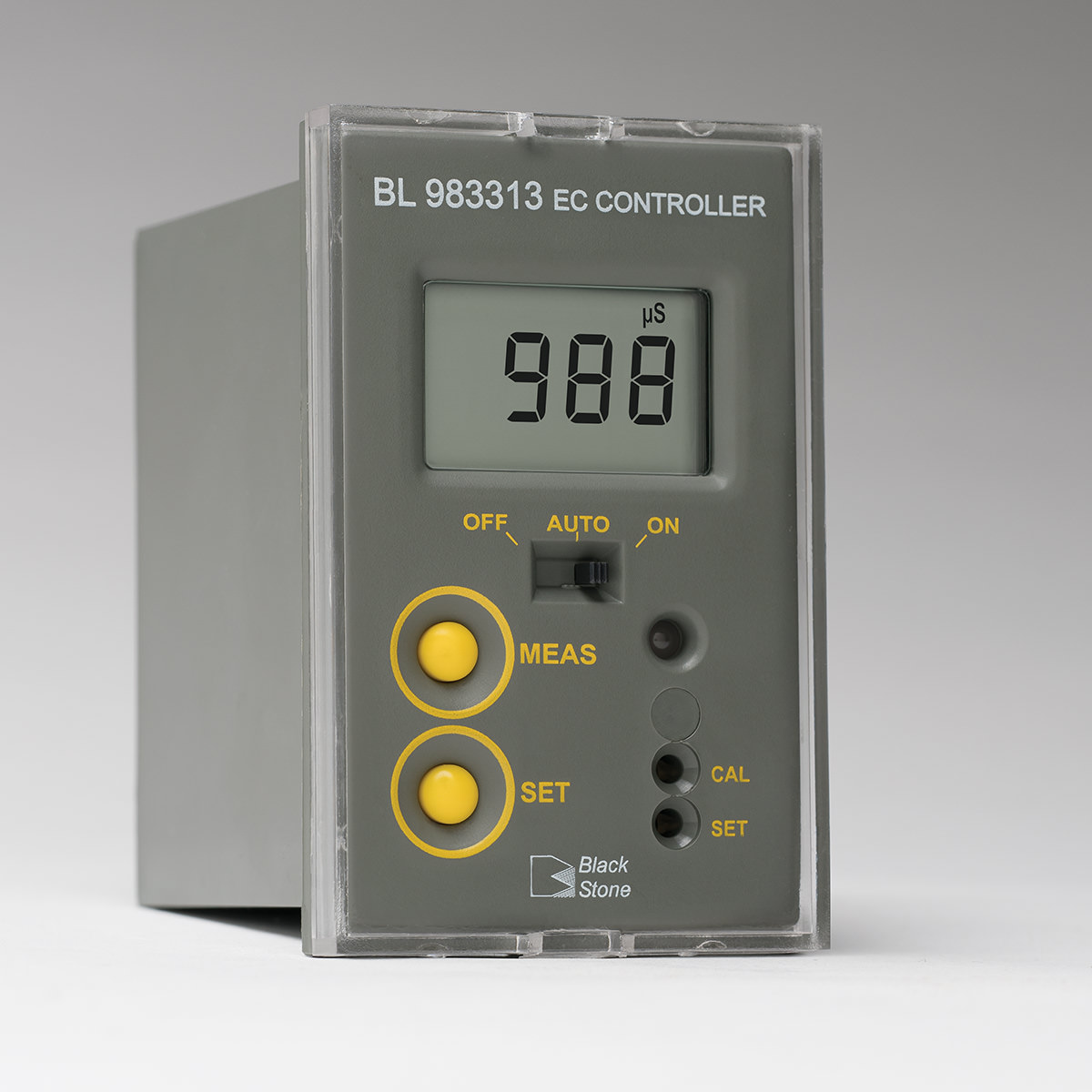

The BL983313 is a compact, panel mounted, process controller for measuring electrolytic conductivity (EC) of a process stream that is within the 0 to 1999 µS/cm range. Users may choose from automatic or manual dosing modes. When in automatic mode the dry contact relay is activated when a reading is above the set point. The relay can be used to activate a dosing pump or a solenoid that controls a valve.
LED changes color based on status.
For additional safety the controllers outer case is made of fire resistant plastic.
A clear plastic cover protects the face panel from dirt and liquids.
Out of stock
The BL983313 features a dosing relay that is activated when the reading is above a user programmable set point.
For enhanced safety the mini controller can be programmed to deactivate the dosing relay if the set point is not reached within a specified time interval. The overdosing timer is programmable from 5 to 30 minutes or disabled.
With the flick of a switch the mini controller’s relay can be disabled (Off), placed in control (Auto), or be activated for manual operation (On) which is useful for priming a dosing pump.
Multicolor LED indicator allows an operator to quickly check the status of the controller.
The relay dosing contact is rated for up to a 2A load and is fuse protected.

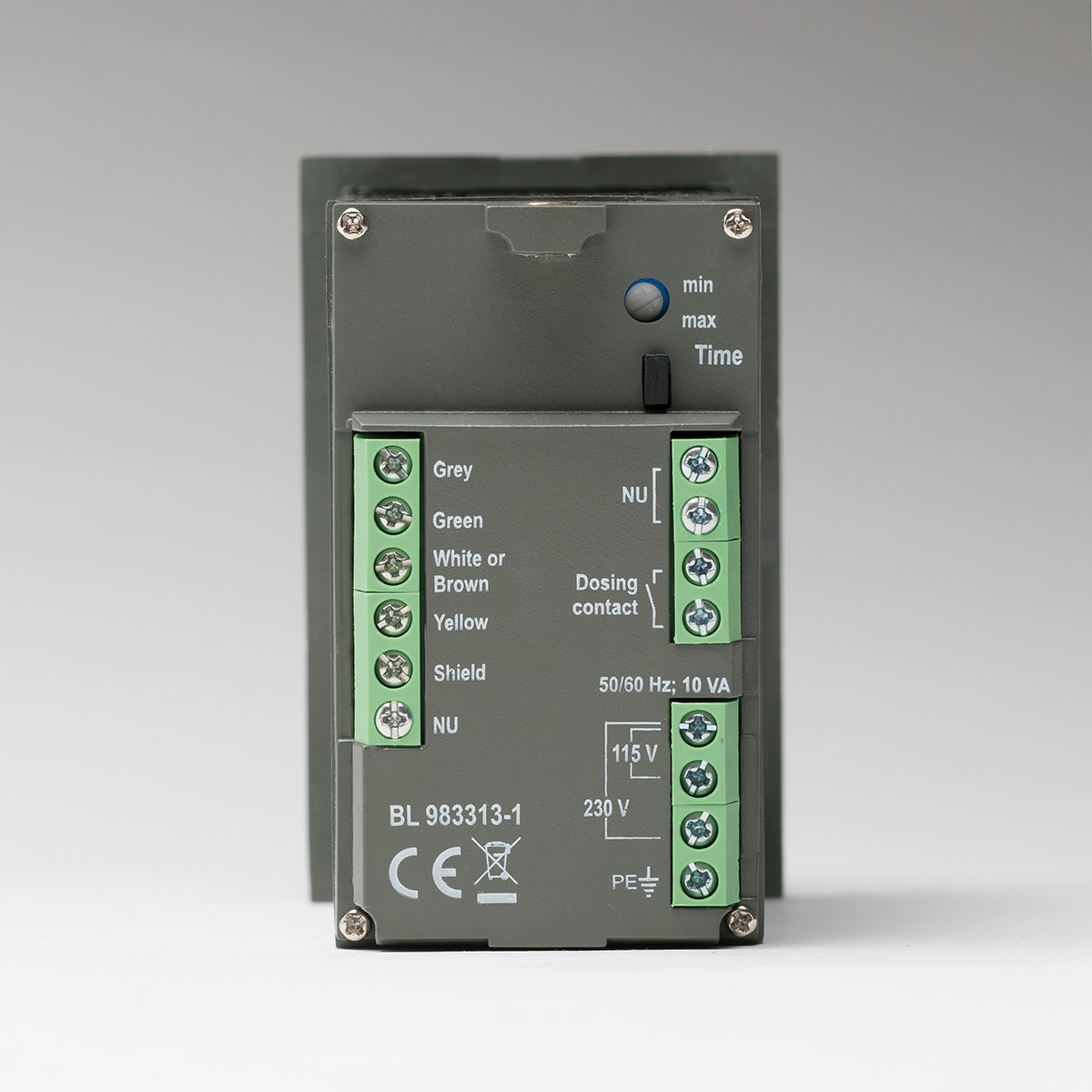

Quick-connect terminal blocks are clearly labeled for easy connection to power, conductivity probe and relay that can be used to operate a dosing pump, valve, audible alarm, or light.
The BL983313 mini controller uses the HI7634 conductivity probe that is available with different cable lengths.
Installation cut-out dimensions are provided as well as outside panel dimensions.
Adjustable location brackets allow the controller to slide easily and securely into place..
